Technical data of K3300F continuous centrifugal
Machinery & equipment

Technical data: K3300F

Straight lines, right angles, compact size

With its compact, box-like shape, the K3300F centrifugal looks quite different from traditional continuous centrifugals. When several K-type machines are placed in a line, their cuboid shape leaves few spaces where dirt can accumulate, as is usually the case – a major benefit in hygiene. With a height of just 1.03 metres, the inside of this BMA centrifugal is easily accessible, making it very user-friendly.

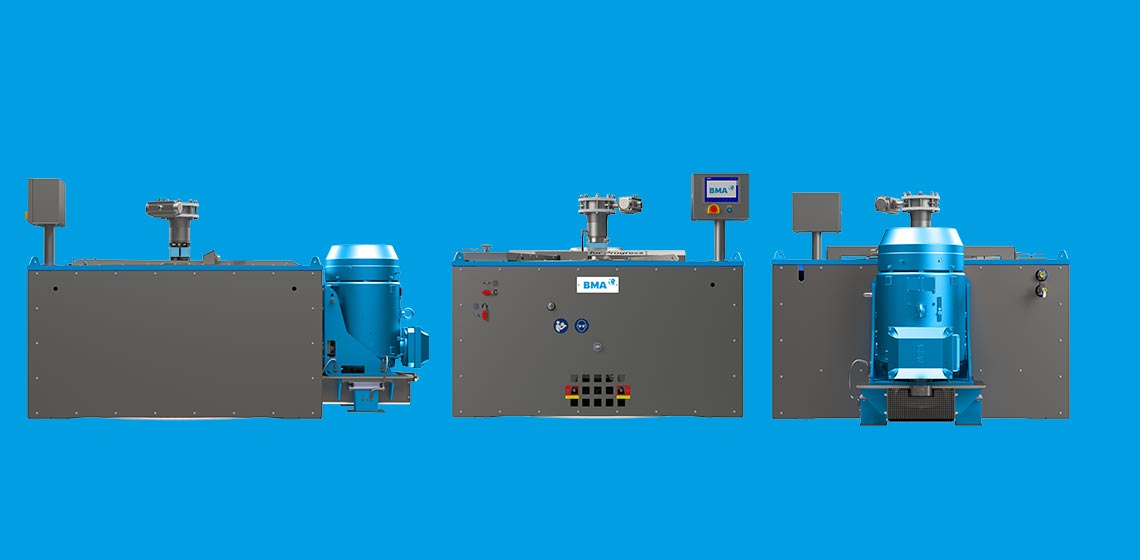

Sideview K3300F BMA continuous centrifugal BMA
Top view K3300F BMA continuous centrifugal BMA

Dimensions and weights

* Varies depending on massecuite quality and model.
    K3300F
Basket diameter top mm 1300
Length a mm 1990
Depth b/b' incl. motor mm 1990 / 2800
Height c mm 1030
Weight kg 3400
Basket angle ° 14/30 (25/27*)

Throughputs */**

*) Typical throughput. Max. throughput for good sugar quality; depending on massecuite quality. **) Maximum throughput. Max. throughput for top machine design; limited by motor rating (sugar quality slightly lower than 2)
  Motor rating 90 kW / 50 Hz 90 kW / 50 Hz 104 kW / 60 Hz 104 kW / 60 Hz
Beet B product t/h 26* 38** 26* 44**
  C product t/h 16* 20** 16* 24**
  C affination t/h 19* 28** 19* 32**
Cane A product - - - -
  B product t/h 25* 35** 25* 40**
  C product t/h 14* 20** 14* 23**
  C affination t/h 19* 25** 20* 26**
Refinery Raw sugar affination t/h 35* 42** 35* 45**
  B product t/h 25* 35** 25* 40**
  C product t/h 14* 20** 14* 23**
